Roland TrueVis VG3 Printers
Roland TrueVIS VG3 Printers
The TrueVIS VG3 series has been engineered for productivity, precision, and print quality. Equipped with advanced automation, the VG3-640 and VG3-540 streamline production workflows. Their expanded color range ensures precise brand matching and vibrant output. Their integrated print-and-cut technology enables seamless job execution. They deliver superior performance across even the most demanding projects.

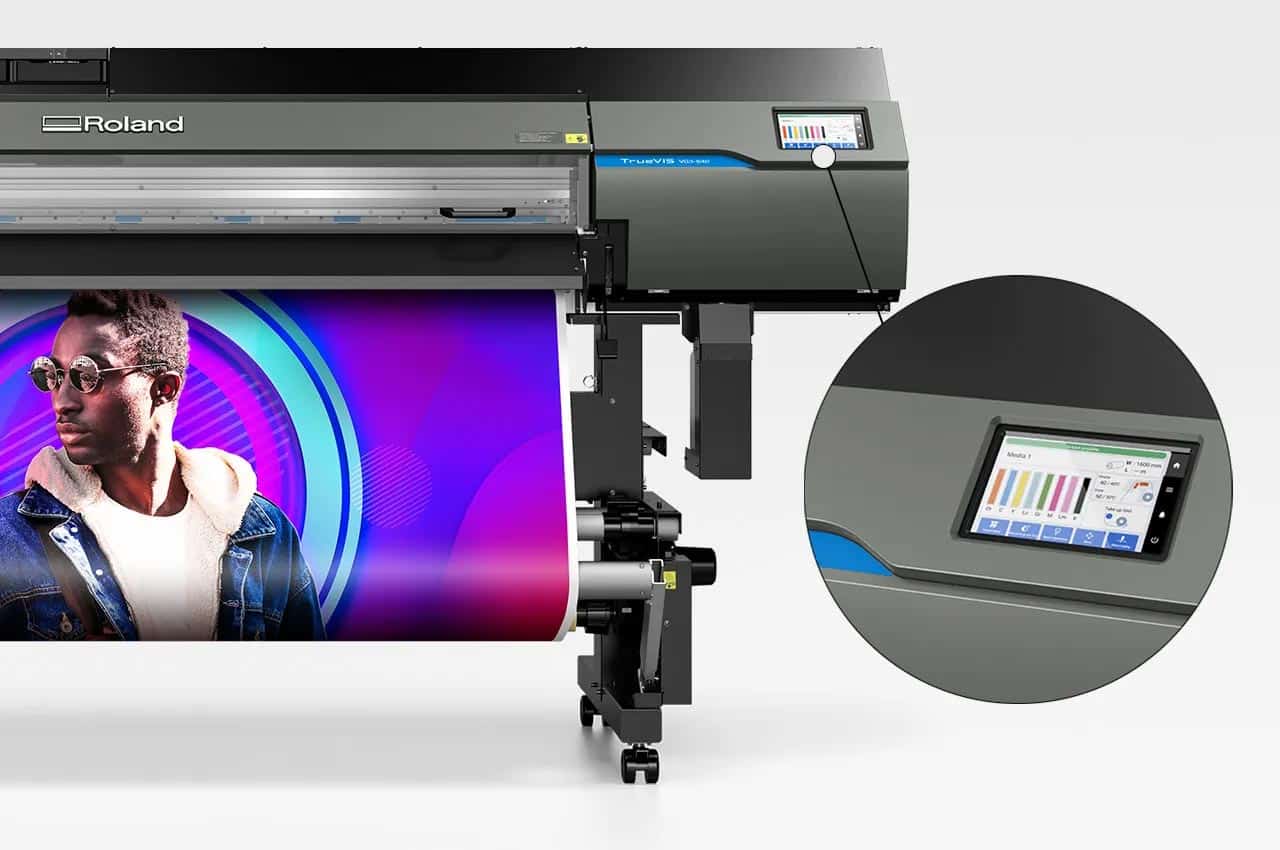

- Enhanced Productivity: A 7-inch LCD touchscreen provides an intuitive interface for efficient operation. Automatic calibration reduces manual adjustments, while built-in automation tools further streamline workflows. Together, these features maximize productivity and cut operator effort.
- Expanded Color Capabilities: Advanced 8-color ink configurations deliver smoother gradations and richer hues. The broader color gamut allows for precise color matching and vibrant results.
- Exceptional Print-and-Cut Precision: Four high-performance FlexFire™ printheads ensure accurate droplet placement and sharp image quality. Integrated cutting technology maintains precise alignment and consistent registration. The result is reliable color reproduction and high-impact, professional-grade graphics.

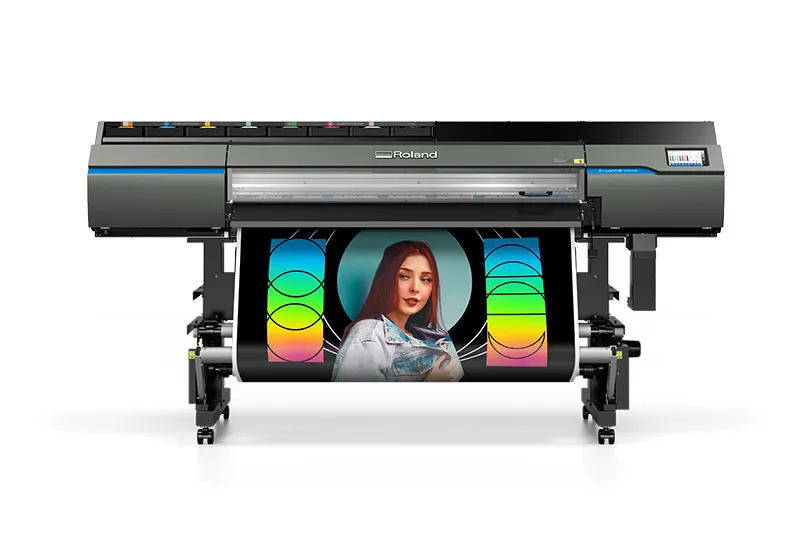

Roland VG3-540
Large Format Print & Cut Printer
$12,495
- Media Size: 54 inches
- Dimensions: 104 x 29 x 52 in. (2,632 x 748 x 1,320 mm)
- Weight: 417 lb. (189 kg)
- Recommended Applications: Signage, Retail Graphics, Vehicle Wraps, Stickers, Labels, Apparel
- Media Width: 11.7 to 54 in. (297.2 to 1,371 mm)
- Media Thickness: Max. 39 mil (1.0 mm) with liner, for printing; Max. 15.7 mil (0.4 mm) with liner and 8.6 mil (0.22 mm) without liner, for cutting
- Outer Roll Diameter: Max. 9.8 in. (250 mm)
- Roll Weight: Max. 77 lb. (35 kg)
- Core Diameter: 3 in. (76.2 mm) or 2 in. (50.8 mm)
- Control Panel: 7” Touchscreen Display
- Ink Capacity: 500 ml pouch (TR2); 250 ml pouch (TR2 White)
- Ink Colors: Ten colors (Cyan, Magenta, Yellow, Black, Light Cyan, Light Magenta, Light Black, Orange, Green, & White) - Choose from 6 different 8-Color configurations
- Ink Configurations:
- CMYK (TR2) - Optimum Productivity, Good Color Gamut, Smooth Transitions, Great Gray Balance
- CMYKLcLmLkOr (TR2) - High Productivity, Great Color Gamut, Super Ultra-Smooth Transitions, Exceptional Gray Balance
- CMYKLcLmLkWh (TR2) - High Productivity, Good Color Gamut, Super Ultra-Smooth Transitions, Exceptional Gray Balance
- CMYKLkOrGrWh (TR2) - High Productivity, Best Color Gamut, Ultra-Smooth Transitions, Exceptional Gray Balance
- CMYKLkOrGr (TR2) - High Productivity, Best Color Gamut, Ultra-Smooth Transitions, Exceptional Gray Balance
- CMYKLcLmOrGr (TR2) - High Productivity, Best Color Gamut, Super Ultra-Smooth Transitions, Excellent Gray Balance
- Resolution: Max. 1,200 dpi
- RIP Included: VersaWorks
- Cut Pressure: 500 gf
- Cut Speed: 0.39 to 11.8 in./s (10 to 300 mm/s)
- Warranty: 1-Year Warranty

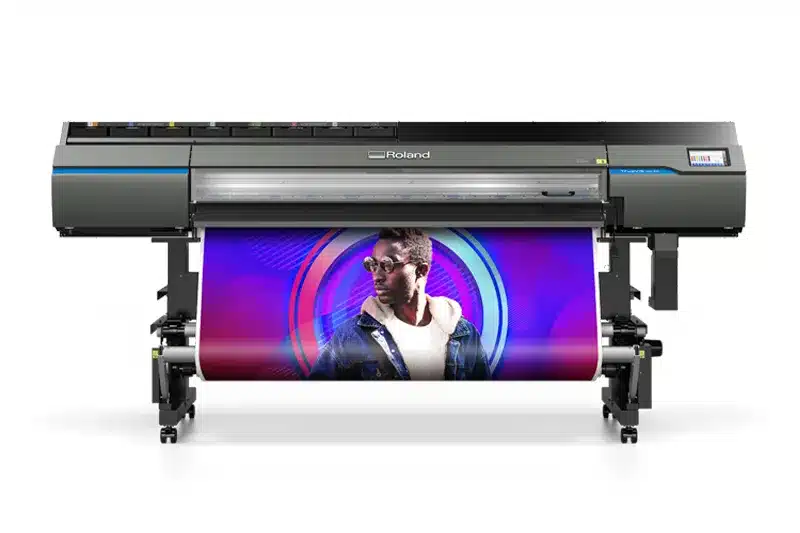

Roland VG3-650
Large Format Print & Cut Printer
$14,495
- Media Size: 64 inches
- Dimensions: 114 x 29 x 52 in. (2,886 x 748 x 1,320 mm)
- Weight: 448 lb. (203 kg)
- Recommended Applications: Signage, Retail Graphics, Vehicle Wraps, Stickers, Labels, Apparel
- Media Width: 13.2 to 64 in. (335.3 to 1,625 mm)
- Media Thickness: Max. 39 mil (1.0 mm) with liner, for printing; Max. 15.7 mil (0.4 mm) with liner and 8.6 mil (0.22 mm) without liner, for cutting
- Outer Roll Diameter: Max. 9.8 in. (250 mm)
- Roll Weight: Max. 99 lb. (45 kg)
- Core Diameter: 3 in. (76.2 mm) or 2 in. (50.8 mm)
- Control Panel: 7” Touchscreen Display
- Ink Capacity: 500 ml pouch (TR2); 250 ml pouch (TR2 White)
- Ink Colors: Ten colors (Cyan, Magenta, Yellow, Black, Light Cyan, Light Magenta, Orange, Green, & White)
- Ink Configurations:
- CMYK (TR2) - Optimum Productivity, Good Color Gamut, Smooth Transitions, Great Gray Balance
- CMYKLcLmLkOr (TR2) - High Productivity, Great Color Gamut, Super Ultra-Smooth Transitions, Exceptional Gray Balance
- CMYKLcLmLkWh (TR2) - High Productivity, Good Color Gamut, Super Ultra-Smooth Transitions, Exceptional Gray Balance
- CMYKLkOrGrWh (TR2) - High Productivity, Best Color Gamut, Ultra-Smooth Transitions, Exceptional Gray Balance
- CMYKLkOrGr (TR2) - High Productivity, Best Color Gamut, Ultra-Smooth Transitions, Exceptional Gray Balance
- CMYKLcLmOrGr (TR2) - High Productivity, Best Color Gamut, Super Ultra-Smooth Transitions, Excellent Gray Balance
- Resolution: Max. 1,200 dpi
- RIP Included: VersaWorks
- Cut Pressure: 500 gf
- Cut Speed: 0.39 to 11.8 in./s (10 to 300 mm/s)
- Warranty: 1-Year Warranty
Continental U.S. Only. With approved credit. Not good with any other offer.
Enhanced Color, Precision, and Performance
TrueVIS technology is trusted by professionals for its reliability and high-quality results. The VG3 series builds this legacy with major advancements in system performance and output precision.
The VG3 features an optimized ink delivery system that ensures accurate and consistent color reproduction. A redesigned user interface simplifies operation and enhances usability. Seamless print-and-cut integration further improves workflow, delivering repeatable, professional-grade results across a wide range of applications.

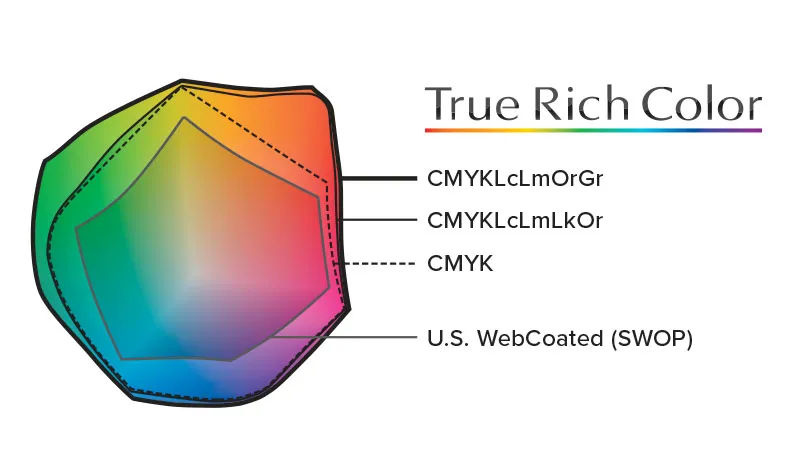

Expanded Color Gamut with True Rich Color and TR2 Inks
TR2 ink is GREENGUARD Gold certified, meeting strict indoor air quality standards and delivering exceptional print performance. It is engineered to expand the color gamut, producing more vibrant and accurate color reproduction. This enhanced performance increases the visual impact of all printed graphics.
Combined with the advanced True Rich Color 3 preset in VersaWorks® 6, enables accurate rendering of difficult hues such as purples, reds, and greens. The result is a broader color range with brighter, more detailed, dynamic output. This makes TR2 ink ideal for applications that require superior color fidelity.
True Color Versatility with Advanced Ink Configurations
The VG3 series offers exceptional flexibility with a range of extended-gamut ink configurations, including Orange, Green, Light Black, and others. These options allow for precise Pantone® and brand color matching. They also deliver smooth gradients, natural skin tones, and accurate gray balance.
New ink combinations provide the widest color gamut in the TrueVIS lineup. Operators can tailor output to specific production needs, from high-speed printing to ultra-smooth tonal transitions and complex color requirements.
Certified Ink Performance for Greater Confidence
The VG3 series, when paired with TR2 inks, is certified under the 3M™ MCS™ Warranty. This industry-recognized certification provides end users with confidence in the durability, color stability, weather resistance, and visual integrity of their printed graphics.
Note: The 3M™ MCS™ Warranty applies to graphics produced on qualifying 3M media using TR2 inks.
Advanced Print/Cut and Productivity Features
- Automated Pinch Rollers: Redesigned rollers automatically lift during cutting while maintaining media tension for precise alignment.
- Nozzle Mask Function: Continue production during nozzle misfires by deactivating affected nozzle bands.
- Custom Crop Function: Improve registration accuracy for long-run jobs, such as decals and stickers, with Crop Mark by Row in VersaWorks®.
- New Media Holder: A one-touch lever and integrated fan simplify media loading and stabilize feeding.
- Smart Media Clamps: Integrated grooves eliminate the need for clamp removal and prevent interference during sheet cutting.
- Perforated Sheet Cutting: “Easy-tear” perforations reduce post-processing time and accelerate finishing.

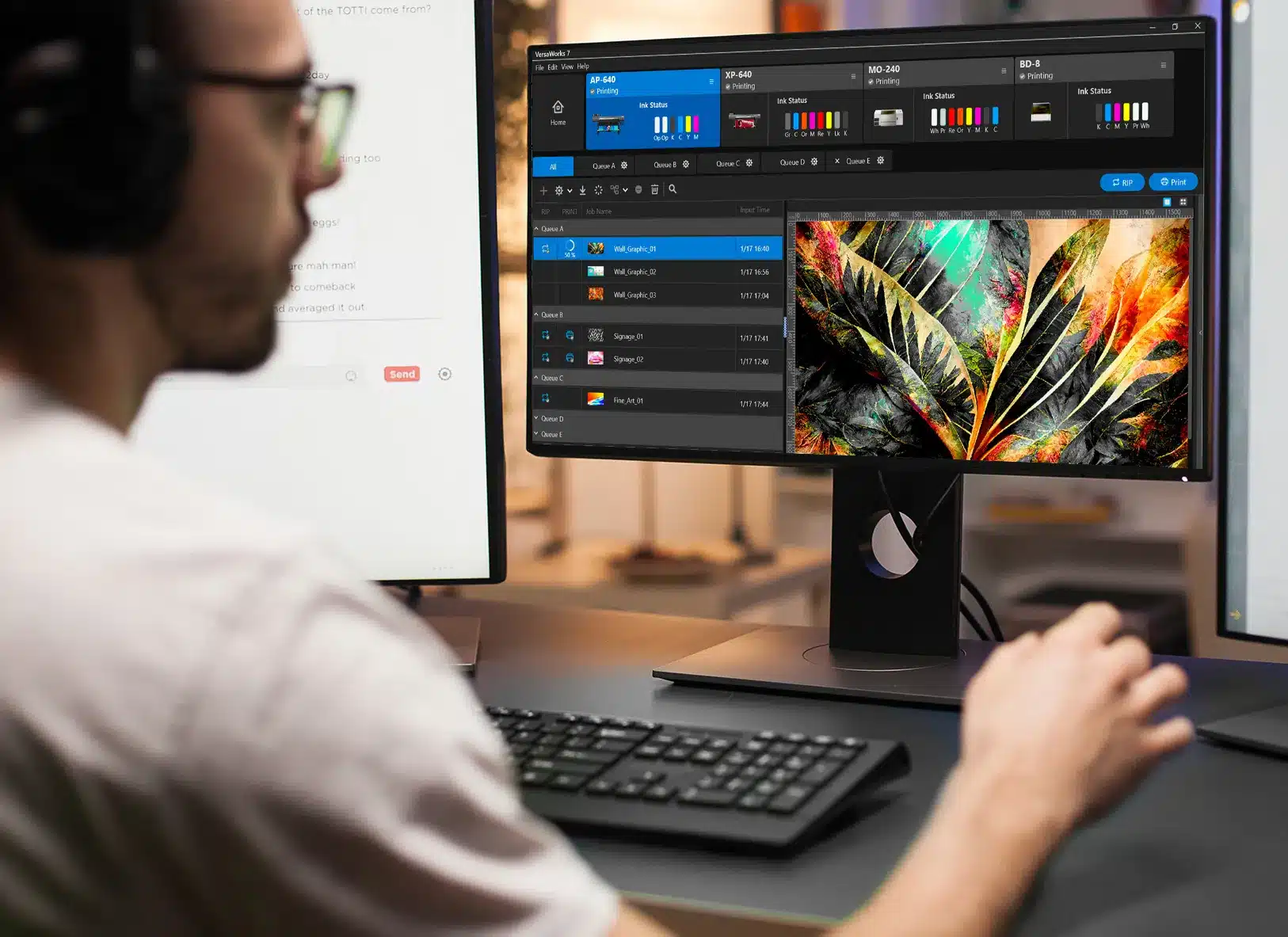

VersaWorks® 7 — Advanced RIP Software Included
Every VG3 printer/cutter comes with VersaWorks® 7, the world’s most widely used RIP software, offering robust tools for color management, workflow automation, and production efficiency.
