High-Volume,
High-Impact Production
—Now with Expanded Color Capability
Increase Your Production Capacity with the High-Performance 24H5 DTF Printer:
Engineered for Scalable Production and Vivid, Expanded Color Output
The ColDesi 24H5 DTF Printer is built for high-performance apparel businesses. It’s designed for high-volume output and trusted by some of the top names in the customization industry.
With a 24-inch print width and 5-head design, the 24H5 delivers exceptional speed and precision. It supports both standard and expanded color-gamut configurations.
The optional CMYKOG + White setup unlocks richer colors, smoother gradients, and greater design flexibility. It’s ideal for brands that demand superior color accuracy and visual impact.
- Unlock Expanded Color Gamut Capabilities
- Print in CMYKOG + White for a wider, more dynamic color range.
- Achieve richer, more vibrant colors with added orange and green channels.
- Ensure greater color accuracy for complex artwork, logos, and brand palettes.
- Produce smoother gradients and tonal transitions for photorealistic results.
- Maximize Production Speed
- Manage high-volume orders efficiently with advanced 5-head printing technology.
- Print multiple designs per run, reducing production cycles and downtime.
- Cut setup time and increase throughput with streamlined batch printing.
- Increase Profitability
- Achieve a lower cost per print through efficient ink and film usage.
- Deliver faster turnaround times, enabling you to serve more clients with ease.
- Stay Competitive in the Custom Apparel Industry
- Compete with large-scale screen printing—without the extensive setup.
- Deliver durable, high-quality, full-color transfers that are superior to other methods.
The ColDesi 24H5 DTF Printer is an excellent choice for businesses that need scalability, efficiency, and versatility in custom apparel printing.

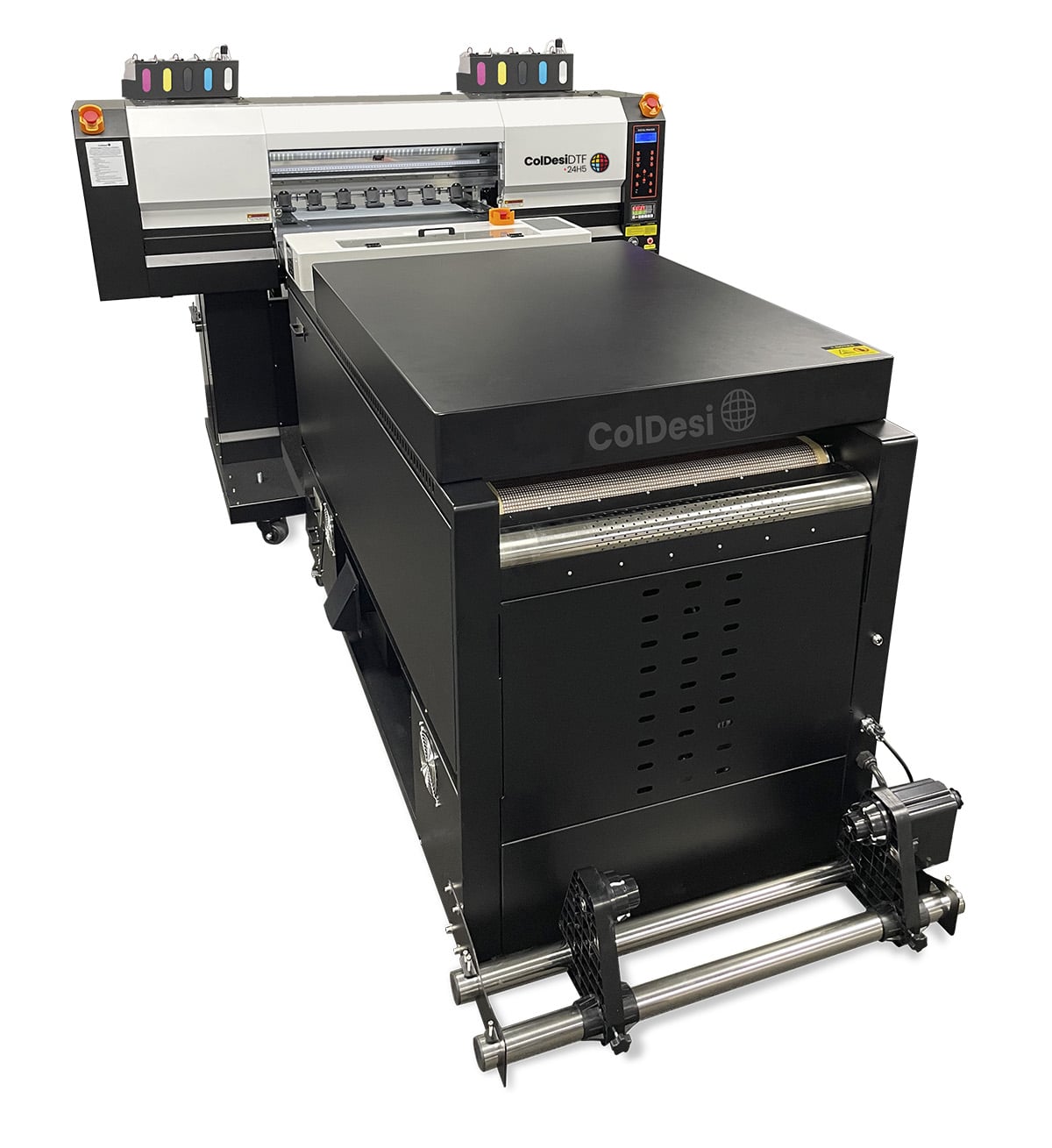

ColDesi 24H5 DTF Printer
-
Printer Heads: 5 Epson i3200 Print Heads
-
Printing Technology: Piezoelectric Inkjet
-
Print Speed:
- Standard CMYKW: 158 Linear Feet/Hour (48 m/h)
- Expanded CMYKOGW: 145 Linear Feet/Hour (40 m/h)
-
Print Method: Variable DOD Using VSD
-
Print Width: 22.5 Inches
-
Color Modes:
- STANDARD: CMYK and White
- EXPANDED: CMYK + OG and White
-
Ink Type: ColDesi DTF OEKO-TEX® ECO PASSPORT Certified Pigmented Water Based Textile Ink
-
Ink Capacity: 500 ml Bottles
-
Print Media: ColDesi 24" x 328' G Series Hot Peel PET Transfer Film
-
Media Transmission: Automatic Tension System (Dancer System)
-
Transmission Interface: USB
-
Included RIP Software: ColDesi’s DTF Print Optimizer Software
-
Supported OS: Windows 10 PC (or greater)
-
Electrical Requirements: Combined 240V/30A
-
Printer Dimensions: 30" x 78" (76.2 cm x 198.12 cm)
-
Shaker/Dryer: 94.5″ x 36″ (240.03 cm x 91.44 cm)
-
Combined Dimensions: 124.5" x 78" (316.23 cm x 198.12 cm)
-
Certifications: OEKO-TEX ECO PASSPORT Certified Inks
-
Warranty: 1-Year Warranty/6-Month Print Head Warranty
-
Service / Support: 7-Day-a-Week Equipment Support / Nationwide DTF Certified Technicians
-
Training: Online Self-Paced Training /One-on-One Training Available
-
Purchase Includes: Startup Consumables Kit / Maintenance Kit
PRINTER INCLUDES:
- Auto Supply Ink System
- White Ink Management System
- Anti-Collision System
- Film Print Vacuum System
- In-Line Heater Pre/Post (Post Default)
- Self-Cleaning Function
- Advanced Paper Pass System
SHAKER/DRYER SPECIFICATION:
- Equipment Models: POW / *POWR
- LCD Touch Screen Control Menu
- Auto Belt Feed with Front/Back Vacuum
- Weighted Powder DAM/Cradle
- Integrated Fume Extractor
- Pre-Heat Table
- Laser Sync Sensor - Belt Control & Powder Release
- *Powder Recirculatory System (POWR)
- Operating Environment: Install in a clean, dust-free space with temperatures between 60°F–80°F and 50%–70% humidity for optimal performance.
- Delivery & Setup: Delivered to your receiving area. Uncrating and self-installation are required. The units are on casters for easy mobility, but handling requires 3-4 people.
- System Requirements: Requires ColDesi’s DTF Print Optimizer Software on a dedicated Windows 10+ PC with 32 GB RAM, 500 GB SSD, USB, and Wi-Fi. Shape
Exceptional Raw Machine Output (RMO)
- Delivers vibrant prints suitable for a wide range of garment types.
- Enables accurate image placement across virtually any print area.
- Fast press times for efficient, high-volume workflows.
- Produces durable transfers that maintain quality through multiple wash cycles.
Number One in DTF
Since 1978 – Over 30,000 – 5 star Reviews – USA Support & Training
Level Up with the ColDesi 24H5 DTF Printer. Boost production speed, expand your color range with CMYKOG + White, and grow your product line—all with one powerful machine.
Advanced 5-Head Printing Technology
The ColDesi 24H5 is powered by five high-precision Epson i3200 print heads, enabling vibrant and accurate CMYK, white, and expanded color output. This robust print system delivers perfectly aligned ink layers—including the white underbase—on the film, not the fabric. The result is cleaner, sharper edges and superior image quality that rivals and often surpasses traditional screen-printing methods.
Expanded Color Gamut for Professional-Grade Results
The 24H5 offers more than standard CMYK output—it features an Expanded Color Gamut option with CMYKOG + White (Cyan, Magenta, Yellow, Black, Orange, Green). This extended color range produces richer saturation, smoother gradients, and enhanced tonal depth. It’s ideal for applications demanding high visual fidelity, such as photographic imagery, brand-critical logos, and intricate multi-color artwork.
Lightning-Speed Standard Printing on the 24H5 DTF Printer
When speed matters most, the ColDesi 24H5 DTF printer delivers unmatched performance with its Standard CMYK and White garment print mode. This setting is an astonishing 9% faster than the Expanded garment print mode, making it the ideal choice for high-volume production runs and tight deadlines. The Standard mode offers exceptional speed without compromising the vibrant color and image quality ColDesi is known for. It's the perfect blend of efficiency and precision for businesses that demand the best.
Automated Wet Capping System for Smart Maintenance
The 24H5’s Automated Wet Capping System simplifies maintenance while preserving print quality. Designed to reduce ink waste and operator intervention, this feature allows users to wet cap the print heads as needed—preventing nozzle clogs during downtime and ensuring peak performance. It’s an intelligent solution for businesses looking to reduce maintenance efforts while maximizing printer uptime and reliability.
Automatic Tension Control (Dancer System)
The 24H5 features a fully automated dancer bar system to ensure smooth, consistent media handling. This motorized tension system uses sensors to maintain optimal film feed throughout production. By preventing slack, stretching, and wrinkling, the system guarantees precise alignment and high-quality output—even during extended production runs—while eliminating manual adjustments and reducing print errors.
OEKO-TEX® ECO PASSPORT Certified Inks
ColDesi’s water-based pigmented inks are OEKO-TEX® ECO PASSPORT certified, meeting rigorous global safety and environmental standards. This certification ensures the inks are safe for human use and environmentally responsible, giving your business a competitive edge in sustainability and compliance across the textile industry.
DTF Print Optimizer Software
Included with every 24H5, ColDesi’s Print Optimizer Software puts professional-grade control at your fingertips. Fine-tune ink lay down by channel, adjust for gradient-heavy designs, or reduce ink usage for single-color applications—giving you the flexibility to optimize each job for cost, speed, and visual impact.
Integrated Fume Extraction for a Cleaner Workspace
The 24H5 includes a built-in fume extraction system, eliminating the need for external units. This internal solution effectively reduces airborne particles and odors, promoting a safer, cleaner production environment with fewer components and lower overhead.

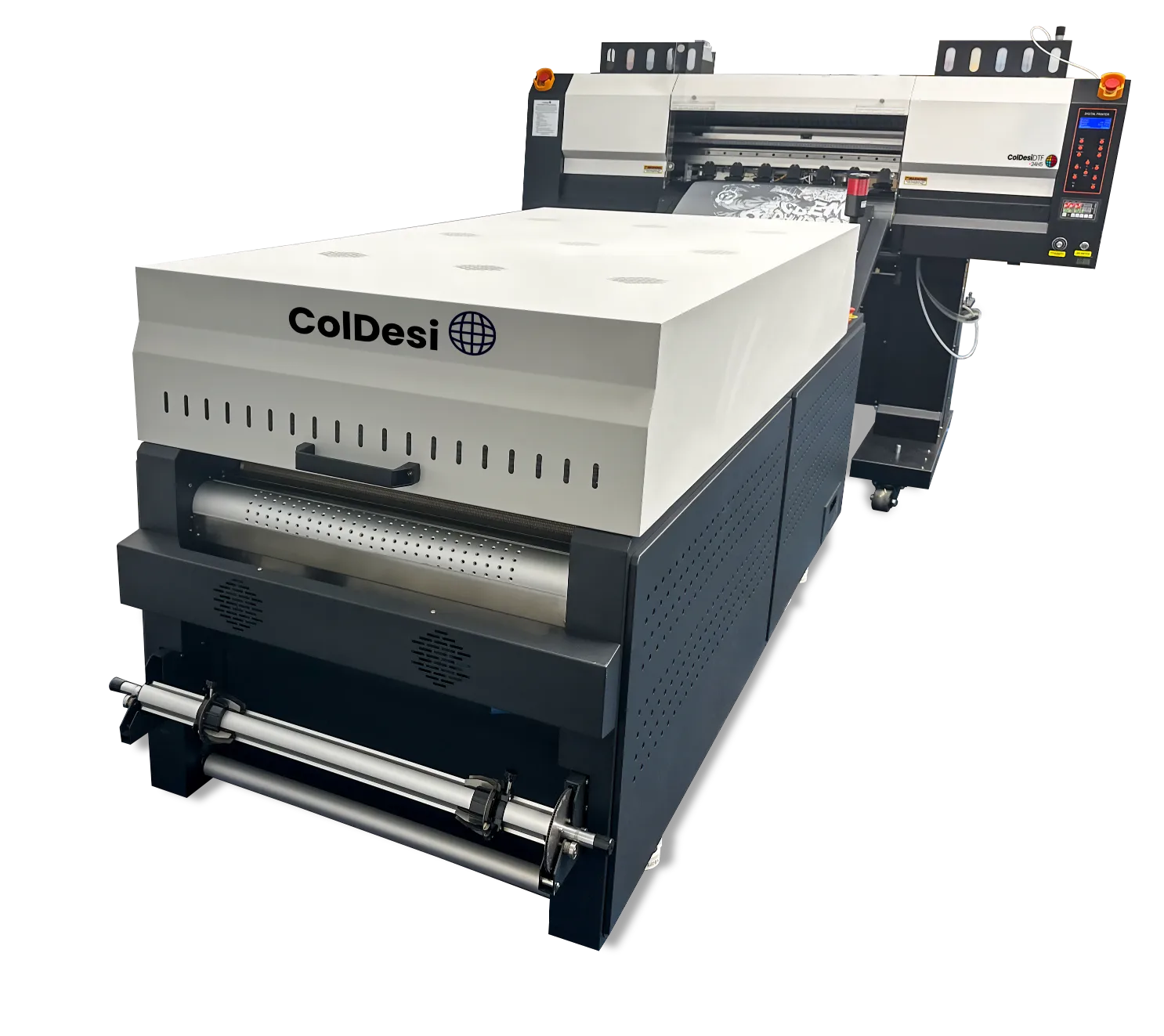

Heated Print Path with High-Efficiency Shaker/Dryer
The 24H5 initiates the drying process immediately with a heated print path, setting the white ink layer for perfect powder adhesion. Paired with the high-performance POWR Shaker/Dryer, your prints are evenly coated, cured, and ready for transfer—ensuring a seamless workflow from print to press.
Why Choose the ColDesi 24H5 DTF Printer?
Proven Performance: DTF printing is a leading solution for producing high-volume, full-color transfers with consistency and versatility. The ColDesi 24H5 elevates this technology with a powerful 5-head print system, delivering vibrant, high-resolution prints at impressive speeds—perfect for demanding apparel production.
Innovation Backed by Industry Expertise: Backed by ColDesi’s decades of experience in custom apparel technology, the 24H5 represents a perfect balance of innovation, reliability, and performance. Supported by knowledgeable sales, technical, and training teams, ColDesi ensures you have the resources and expertise to scale your DTF printing operation with confidence.
Versatile Printing Capabilities with the ColDesi 24H5
Ideal for printing on:
- T-shirts
- Polos
- Sweatshirts
- Backpacks
- Aprons
- Flags
- Sports uniforms
- Company dress shirts
Compatible with multiple fabric types, including:
- Combed cotton
- Ring-spun cotton
- Organic cotton
- Polyester
- Poly-cotton blends
- Tri-blends
- Polyester-spandex blends
Elevate Your Production with the ColDesi 24H5 DTF Printer
Achieve faster output, richer color depth, and greater product versatility—designed for custom apparel businesses ready to scale.
Print more faster, and with more precision
Lower cost per print & maximize profitability
Scale your business with cutting-edge technology
Ready to Scale Your Custom Apparel Business? The 24H5 is built for high-demand DTF printing. Talk to a ColDesi expert today—fill out the form or call 877-793-3278!
