Print and Cut
VersaSTUDIO BN2 Series

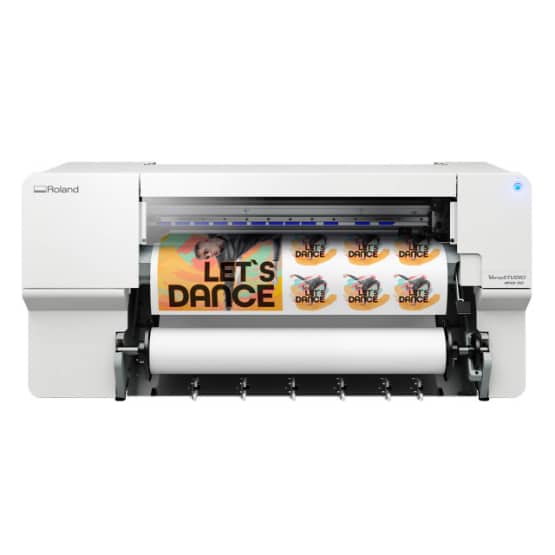

Roland VersaSTUDIO BN2 Series of Printers
What is the VersaSTUDIO BN2-20?
The VersaSTUDIO BN2 series of printers are 20” Printers and Cutters with special eco-solvent inks.
Think of it like a traditional desktop printer, or popular hobby cutter options like Cricut or Silhouette, with the ability to handle a larger workload, and create some fantastic results.
Ready for Anything:
- T-Shirts
- Banners
- Stickers
- Window Clings
- Decals
- and more!
Lightning-Fast Print Speeds
Professional Print Quality
Roland has a strong reputation for professional quality prints across their line of print and cutting machines. With consistent high-quality prints, many professionals rely on some of Roland’s biggest printers to run their businesses.
The reason the VersaSTUDIO BN2 series of printers can create such vibrant results is by delivering high-resolution full-color prints. Printing at a max resolution of 1440 x 1080, this is the perfect resolution for rendering letters and small details on your prints. This creates the perfect option for anyone printing banners and store signage, as well as guaranteeing pristine image quality for any print job. The BN2 series of printers also support the True Rich Color 3 print mode, which can push the color range even further for results unlike anything else.
Built with Convenience in Mind
BN2 Printer Product Features
- VersaWorks 6 for Roland VersaStudio Printers
It includes a modern, intuitive interface with drag and drop features, printing ques for process, and tools to control:
- Layout
- Quality
- Color Management Settings
- Advanced Job Management
Plus, it includes Roland Color System and PANTONE® libraries, giving you detailed spot color matching and automated color matching of logos and other design elements.
- Roland DG Software:
- Roland DG Hub allows an easy access point to all the printer software
- Roland DG Connect helps maintain performance, including maintenance reminders to minimize downtime
- FlexiDESIGNER VersaSTUDIO software helps simplify the print-cut workflow and streamlines the design to print process*
System Requirements
- Operating system - Windows® 10 (32/64-bit) Windows® 8.1 (32/64-bit) Windows® 7 Professional / Ultimate (32/64-bit)
- CPU - Intel® Core™2 Duo, 2.0 GHz or faster recommended
- RAM - 2 GB or more recommended
- Video card and monitor - A resolution of 1,280 x 1,024 or more recommended
- Free hard-disk space - 40 GB or more recommended
- Hard-disk file system - NTFS format
- Other requirements – USB Port, Internet Connection
| Specifications | VersaStudio BN2-20A | VersaStudio BN2-20 |
|---|---|---|
| Printing Method / Cutting Method | Piezo ink-jet method | Piezo ink-jet method |
| Media Width | 5.9 to 20 in. | 5.9 to 20 in. |
| Media Thickness |
Printing: Maximum 39 mil (1.0 mm) with liner Cutting: Maximum 16 mil (.4 mm) with liner and and 0.22 mm (8.6 mil) without liner |
Printing: Maximum 39 mil (1.0 mm) with liner Cutting: Maximum 16 mil (.4 mm) with liner and and 0.22 mm (8.6 mil) without liner |
| Media Roll Weight | Maximum 13.2 lbs (6 kg) | Maximum 13.2 lbs (6 kg) |
| Media Roll Outer Diameter | Maximum 5.9 in (150 mm) | Maximum 5.9 in (150 mm) |
| Media Core Diameter | 2 in (50.8 mm)or 3 in (76.2 mm) cores | 2 in (50.8 mm)or 3 in (76.2 mm) cores |
| Printing/cutting width | Maximum 18.9 in (480 mm) | Maximum 18.9 in (480 mm) |
| Ink Cartridges - Type & Capacity | Roland ECO-SOL MAX2 and ECO-SOL MAX3 inks | Roland ECO-SOL MAX2 and ECO-SOL MAX3 inks |
| Ink Colors | 4 Colors - Cyan, Magenta, Yellow, Black | 5 Colors - Cyan, Magenta, Yellow, Black, White |
| Printing Resolution | Max 1440 dpi | Max 1440 dpi |
| Cutting Blade Type | Roland CAMM-1 series cutter blade | Roland CAMM-1 series cutter blade |
| Cutting Force / Offset | 30 to 500gf | 30 to 500gf |
| Cutting Speed | 0.39 to 5.9 in/s (10 to 150 mm/s) | 0.39 to 5.9 in/s (10 to 150 mm/s) |
| Connectivity | Ethernet (100BASE-TX/1000BASE-T, automatic switching) | Ethernet (100BASE-TX/1000BASE-T, automatic switching) |
| Power-saving Function | Automatic sleep feature | Automatic sleep feature |
| Power Supply | 100-240 Va.c. 50/60 Hz 2.1 A | 100-240 Va.c. 50/60 Hz 2.1 A |
| Dimensions (Width x Depth x Height) | 42.1 in. × 24.3 in. × 24.5 in. (1,069 mm × 617 mm × 622 mm) | 42.1 in. × 24.3 in. × 24.5 in. (1,069 mm × 617 mm × 622 mm) |
| Weight | 137 lb. (62 kg) | 137 lb. (62 kg) |
Machine only package starts at $6,495
(does not include Supplies, Training & Support)
If you are a new user, shop complete equipment packages below that include so much more than just a printer.
Questions? Talk to a pro at 877-793-3278
Roland VersaStudio BN2 20A
-
Roland BN2-20A Eco Solvent Printer Cutter
-
Training and Support
-
Easy loading media system
-
R-Works™ design software included
-
VersaWorks 6 RIP Software included
-
Roland OnSupport software for remote production tracking available for download
-
One-Year Trouble-Free Warranty
-
Eco-Sol Max2 CMYK Ink Set [Cyan, Magenta, Yellow, Black]
-
Cleaning Cart. Kit
-
Magic Master Squeege
-
4 Piece Weeding Picks
-
BN2-20 Drain Assembly
-
$50 Colman & Co Supply Coupon
-
How To Start A T-Shirt Business Training
OR
Continental U.S. Only. With approved credit. Not good with any other offer.
Roland VersaStudio BN2 20
-
Roland BN2-20 Eco Solvent Printer Cutter
-
Training and Support
-
Easy loading media system
-
R-Works™ design software included
-
VersaWorks 6 RIP Software included
-
Roland OnSupport software for remote production tracking available for download
-
One-Year Trouble-Free Warranty
-
Eco-Sol Max2 CMYK Ink Set [Cyan, Magenta, Yellow and Black]
-
(Optional) White or Metallic Ink add-on
-
Cleaning Cart. Kit
-
Magic Master Squeege
-
4 Piece Weeding Picks
-
BN2-20 Drain Assembly
-
$50 Colman & Co Supply Coupon
-
How To Start A T-Shirt Business Training
OR
Continental U.S. Only. With approved credit. Not good with any other offer.
White or Metallic ink addon is an additional cost..
Or fill out the form below for more info.
We believe in privacy and communicating in the best way for your business. By completing the above form, you agree to be contacted by ColDesi Inc through phone calls, emails, and text messages. You can opt-out of emails with unsubscribe links or opt-out of texts by replying STOP at any time.
Looking for more options?
Ask our pros about Direct to Film transfer printing and other larger printers available from Roland.
