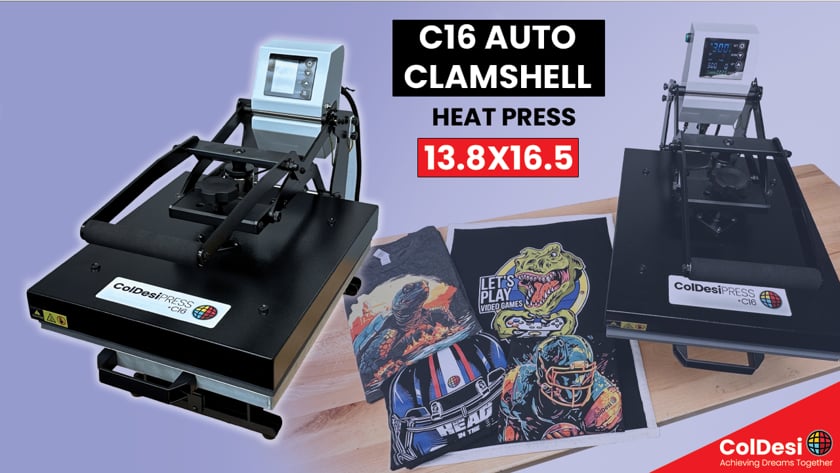

ColDesi C16 Heat Press
Unleash Your Creativity with Precision and Ease
The ColDesi C16 Heat Press is designed to deliver professional results every time. With its compact size and innovative features, this heat press is perfect for users utilizing A3 and A4 printing solutions.
“I love the ColDesi C16 Heat Press! The slide-out lower platen makes garment handling a breeze. The consistent, even heat across the platen provides perfect prints every time.” – Chris T.
Discover the unmatched precision and versatility of the ColDesi C16 Heat Press.
Elevate your printing game today with the ColDesi C16 Heat Press.
Key Features
- Interchangeable Control Box
- Over-the-Center Pressure Distribution
- Superior Even Heating
Ready to Take Your Custom Printing to the Next Level?
Upgrade your custom printing equipment today and experience the innovative features that make this heat press a must-have for any business
Advanced Features:
- Dressable Lower Platen: The large space at the base allows users to dress garments over the lower platen without stretching them out. Simply load the shirt onto the platen and feed the bottom of the garment through the clearance underneath the lower platen.
- Slide-Out Lower Platen: With a slide-out lower platen, customers can dress garments freely without worrying about burning their hands on the upper heat platen during this process.
- Interchangeable Control Box: Featuring a quality aviation connector, the control box can be easily removed and reattached, simplifying maintenance.
- Unique Heating Platen for Even Heat Distribution: Our uniquely designed heating platen ensures even heat distribution with a maximum variation of 5 degrees across the entire printing area, enabling users to achieve ideal prints every time.
- Over-the-Center Pressure Distribution: The pressure source is strategically placed over the center of the upper platen and uses struts to drive that pressure out to all corners.
Machine Specifications:
- Model Name: ColDesi C16 Heat Press
- Power Requirements: 1500W, 120V; 12.5A / 240V; 6.5A
- Heater Size: 13.8" x 16.5" (350 mm x 420 mm)
- Lower Platen Size: 13.8" x 16.5" (350 mm x 420 mm)
- Temperature Range: Max. 430°F (221°C)
- Time Duration: 0 - 999 seconds
- Heating Up Time: 25 minutes to reach 356°F (180°C)
- Operation: Auto-Open
- Product Weight: 71.9 lbs. (32.6 kg)
- Packaging Weight: 81.6 lbs. (37 kg)
- Machine Dimensions: 23.1" x 14.3" x 18.6" (588 mm x 363 mm x 473 mm)
- Packaging Dimensions: 26.8" x 18.1" x 21.7" (681 mm x 460 mm x 551 mm)
- Certification: CE, FCC
- Warranty: 1-Year warranty on the entire machine, 5-Year warranty on the heat platen
“Being able to remove the control box and having even pressure distribution are fantastic features.
It’s easy to maintain and gives us consistent, high-quality results.” – Todd K.
